Arduino Laser Tag Land Mine :: Student Project

Want to spice up your laser tag game – why not add some Arduino laser tag landmines?

This is another cool project created by James, an Arduino Course for Absolute Beginners Academy student.

James writes about this project…

“A friend who runs a Laser Tag business approached me to create some grenades/land mines for players to use.

Hardest thing to code was the actual command to “explode” the player.

Another hurdle was that IR LEDs work best in low light conditions but have poor performance during daylight.”

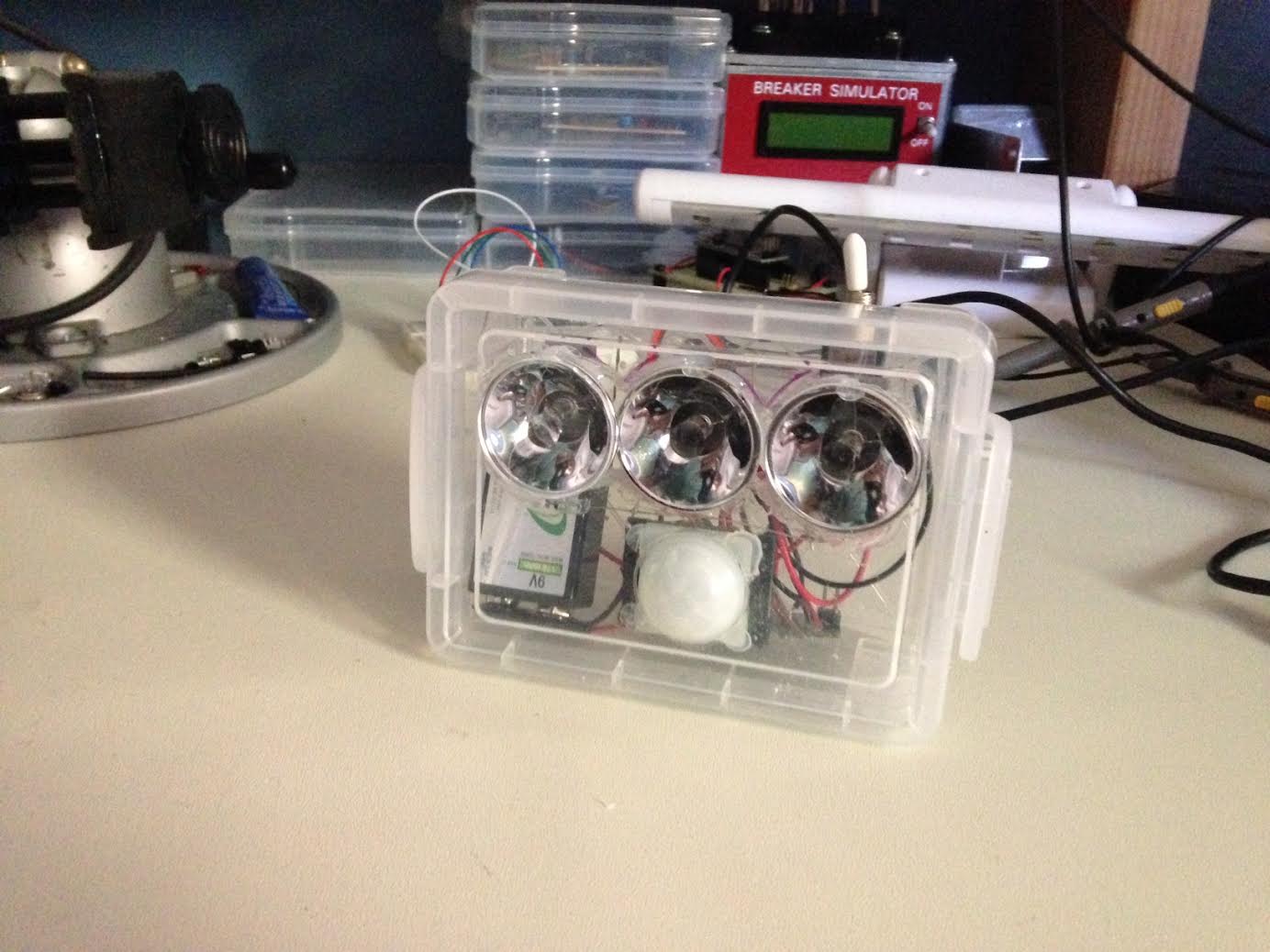

James was kind enough to share his schematics and code.Arduino Laser Tag Land Mine

Schematics:

Laser_Tag_Claymoore_V1

Laser_Tag_schem

Code:

// This is a working laser tag command code that explodes player. It it triggered by a PIR, which

runs subloop "SendLaserCode", it repeats 10 times to ensure all players in area recieve code

and explode.

// This utilizes new Nano3 chips, with PIR.

const int IRledPin = 9;// IR LED on PWM output

const int MotionPin = 7; // PIR

int MotionState; // varible for PIR output

void setup() {

  // set pins to CPU to accept IN/OUT commands

  pinMode(IRledPin, OUTPUT);

  pinMode(MotionPin, INPUT);

  delay(10000);

}

// this only forces the program to come back to this point and turn off KILL led.

void Reset(){

  //digitalWrite (IRLedPin, LOW);

}

void loop() {

  // read the PIR state

  MotionState = digitalRead (MotionPin);

  // if the PIR goes HIGH then run the code and turn on KILL led

  if (MotionState == HIGH){

    for (int i = 1; i < 1000; i ++){       //digitalWrite(IRledPin, HIGH);       SendLaserCode();       delay(100);     }   }   // when button is released, this subrountine is called (read above)   else{     Reset();   } } // This procedure sends a 38KHz pulse to the IRledPin, also know as "carrier" frequency. // for a certain # of microseconds. We'll use this whenever we need to send codes void pulseIR(long microsecs) {   // we'll count down from the number of microseconds we are told to wait   while (microsecs > 0) {

    digitalWrite(IRledPin, HIGH); // this takes about 3 microseconds to happen

    delayMicroseconds(9); // this is half the time T=1/f minus 3

    digitalWrite(IRledPin, LOW); // this also takes about 3 microseconds

    delayMicroseconds(9); // this is the other half

    // this is the total time for a given freq 26 micro = 1/38000

    microsecs ­= 26;

  }

}

void SendLaserCode() {

  pulseIR(2350); // this is the HEADER

  delayMicroseconds(600);// the first gap between HEADER and actual code

  // The following code is the COMMAND CODE to KILL a player instantly

  // 0x83, this is HEADER info

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  // This is actual command to EXPLODE player

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(1000);

  // 0xE8, this is FOOTER info

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(1000);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

  delayMicroseconds(850);

  pulseIR(400);

}

If you are interested in learning more about the project, feel free to reach out through the comments – James would love to hear your feedback!

2 Comments

  1. Avatar FRANK MILLER on October 21, 2014 at 8:29 am

    Hi James, I also own a Laser Tag facility using Laser Blast equipment. I was wondering how you got the IR code to kill/explode the player. Thanks.

  2. Avatar James Greever on October 22, 2014 at 6:57 pm

    Got the code from this website: http://www.lasertagparts.com/mtformat-2.htm.
    After some field testing, I am currently building a laser tag bomb suitcase. It will use a 7 segment display to show a timer counting down, with a numerical pad to disarm.
    I will use the same explode code.
