LED Knuckle Glove using miniaturized Arduino LilyPad [Ozzy Osbourne Knuckle Tattoo Wanna Be]

Here my first go at an Arduino textile project.  It turned out to be pretty easy.

And I’d like to think that think Ozzy Osbourne would like it…

What You Need:

Click Here to Download this List and the Schematic

Circuit Setup:

I know – not very technical!  But hey – it’s the best way I felt I could communicate the layout.

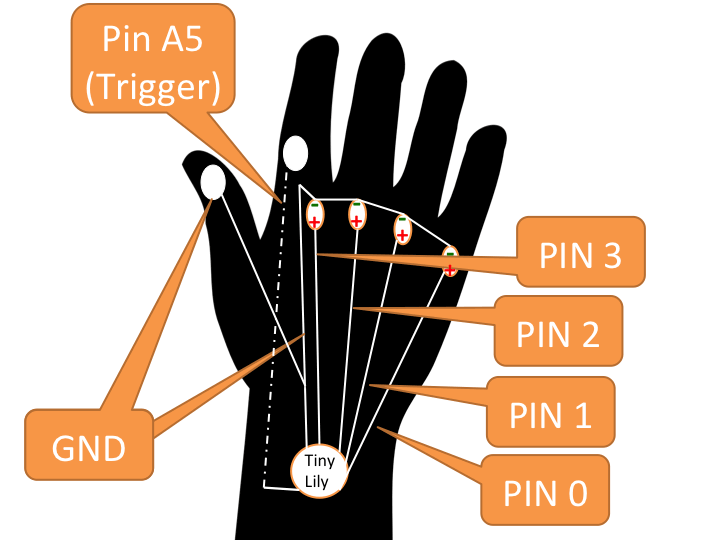

LED Knuckle Glove_OP

All the lines in diagram indicate the conductive thread connections.  The two white circles on the thumb and pointer finger, are where you create “pads” by making multiple passes of the conductive thread.   The ovals on the knuckles are the LED circuit boards.

Code:

/*
LED Knuckle Glove (Ozzy Ozbourne wanna be)

 Circuit:

 TinyLily as processor - conductive thread as connective wire
 Pin 0 > TinyCiruits LED circiut board at PINKY finger > GND
 Pin 1 > TinyCiruits LED circiut board at INDEX finger > GND
 Pin 2 > TinyCiruits LED circiut board at MIDDLE finger > GND
 Pin 3 > TinyCiruits LED circiut board at POINTER finger > GND

 Pin A5 > conductive thread up the side and a "pad" stichted to the left side
 of the pointer finger knuckle

 GND > conductive thread up the side  of the THUMB and a "pad" stichted on the thumb.
 also connected to all finger LEDs as indicated above and Also

 MODEs
 Mode 0 = LEDs back and forth in sequence
 Mode 1 = all LEDs blink
 Mode 2 = LEDs on Solid


 Created SEPT 2014 by
 Michael James


Home
This code is in the public domain */ //Control Variables //when the thumb touches the trigger, the glove enters and increments the different Modes int LED_Trigger_Pin = A5; int Mode = 0; //determines which mode the LEDs flash in //MODE 0 Variables int timer = 50; // The higher the number, the slower the timing. void setup() { //set an internal pullup resistor on the trigger pinMode(LED_Trigger_Pin, INPUT_PULLUP); // use a for loop to initialize each pin as an output: for (int thisPin = 0; thisPin < 4; thisPin++) { pinMode(thisPin, OUTPUT); } } void loop() { //////////////////////MODE 0//////////////////////////////////// // LEDs illuminate back and forth in sequence ///////////////// //Check the mode if(Mode == 0){ //continue while trigger is pressed while( digitalRead(A5) == LOW ){ // loop from the lowest pin to the highest: for (int thisPin = 0; thisPin < 4; thisPin++) { // turn the pin ON digitalWrite(thisPin, HIGH); delay(timer); // turn the pin OFF digitalWrite(thisPin, LOW); }//close for // loop from the highest pin to the lowest: for (int thisPin = 3; thisPin >= 0; thisPin--) { // turn the pin ON digitalWrite(thisPin, HIGH); delay(timer); // turn the pin OFF digitalWrite(thisPin, LOW); }//close for }//close while //increment the mode Mode++; //spece between next trigger delay(500); }//close if //////////////////////MODE 1//////////////////////////////////// //// All LEDs Blink /////////////////////////////////////////// //Check the Mode if(Mode == 1){ //continue while trigger is pressed while( digitalRead(A5) == LOW ){ //Turn all LEDs on // loop from the lowest pin to the highest: for (int thisPin = 0; thisPin < 4; thisPin++) { // turn the pin on digitalWrite(thisPin, HIGH); }//close for //delay to see the LEDs ON delay(500); //turn off all LEDs for (int thisPin = 0; thisPin < 4; thisPin++) { //turn the pin OFF digitalWrite(thisPin, LOW); }//close for //delay to see the LEDs OFF delay(500); }//close while //increment the mode Mode++; //spece between next trigger delay(500); }//close if //////////////////////MODE 2//////////////////////////////////// //// Turn ALL LEDs On ///////////////////////////////////////// //Check the Mode if(Mode == 2){ //continue while trigger is pressed while( digitalRead(A5) == LOW ){ //Turn all LEDs on loop from the lowest pin to the highest: for (int thisPin = 0; thisPin < 4; thisPin++) { // turn the pin ON digitalWrite(thisPin, HIGH); }//close for }//close while //Turn off all LEDs after trigger is released for (int thisPin = 0; thisPin < 4; thisPin++) { //turn the pin OFF digitalWrite(thisPin, LOW); }//Close for //Increment the mode Mode++; //Delay to debounce trigger presses delay(500); }//close if ///////////////////////////////////////////////////////////// ///////////////// RESET Phase //////////////////////////////// //if the mode is greater than 2, then start the mode back at 0 if(Mode > 2){ Mode = 0; }//close if }//close loop

If you make one, let me know how it goes!
